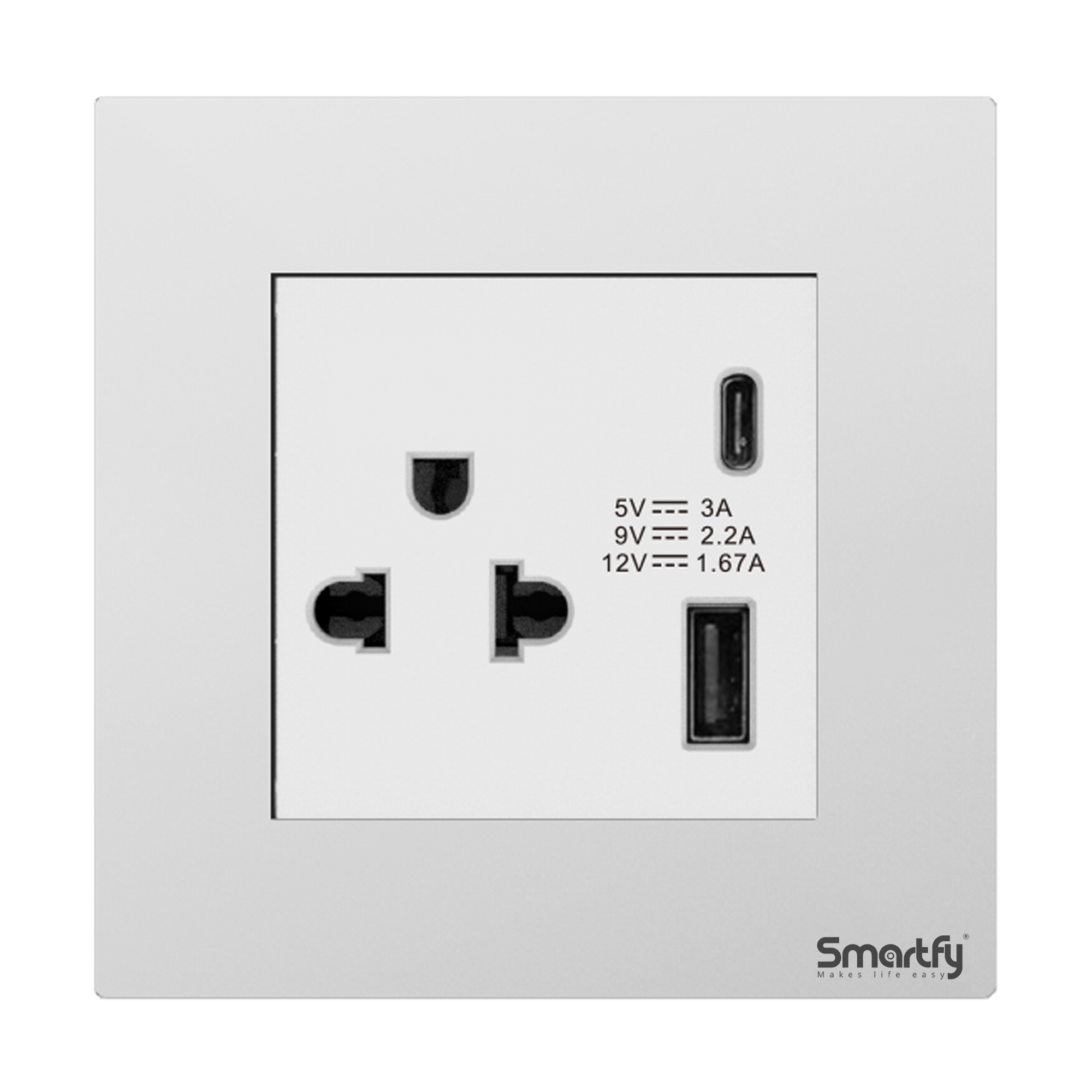

SMARTFY Thailand Socket with Dual USB (C + A) | Aluminum D8B High-Voltage Wall Socket

SMARTFY Thailand Socket with Dual USB (C + A)

Aluminum D8B Series | High-Voltage Wall Socket with USB Charging

---

Product Introduction

The SMARTFY Thailand Socket with Dual USB (C + A) is a versatile power solution designed for modern homes, offices, and commercial spaces. It provides safe high-voltage AC power alongside dual USB charging ports (Type-C + Type-A) for smartphones, tablets, and other portable devices. Built with a premium aluminum panel and robust internal components, this socket ensures reliable performance, aesthetic appeal, and international compatibility.

---

General Product Information

• Brand: SMARTFY

• Product Name: Thailand Socket with Dual USB (C + A)

• Product Type: Wall-mounted power socket with USB charging

• Socket Standard: Thailand Standard / TIS 166-2549

• Series: D8B Aluminum Series

• Category: High-Voltage Power Socket

• Applications: Homes, hotels, serviced apartments, offices, cafes, and commercial spaces

---

Electrical & Performance Specifications

• Rated Current: 16A

• Rated Voltage: 250V AC

• Frequency: 50/60Hz

• USB Input Voltage: 100–240V AC

• USB Output Voltage & Current:

  • 5V ⎓ 3A (Type-A/C)

  • 9V ⎓ 2.2A (Quick Charge)

  • 12V ⎓ 1.67A

• Switch Type: Not included

• High-Voltage Compatibility: Yes

• Relay Function: Not included

• Changeable Backlight Function: Not available

• Power Stability: Designed for simultaneous high-load AC and USB usage

---

Wiring & Safety Features

• Wiring Method: Live Line / Neutral Line

• Electrical Protection: Over-current, over-voltage, and short-circuit safe

• User Safety Compliance: Meets international electrical and USB charging safety standards

• Indicator / Neon: Not included

---

Installation & Mechanical Design

• Installation Method: Flush-mounted in-wall installation

• Wall Box Compatibility: Standard 86mm wall box

• Recommended Embedded Depth: ≥45mm

• Mounting Style: Screw-fixed installation

• Installation Orientation: Horizontal or vertical

• Mechanical / Touch Lifespan: ≥100,000 operations

---

Materials & Surface Finish

• Front Panel Material: High-grade Aluminum

• Internal Housing: Flame-retardant engineering plastic

• Surface Treatment: Spray-coated / Brushed finish

• Surface Properties: Scratch-resistant, corrosion-resistant, easy to clean

• Color Options: Multiple premium finishes available

---

Dimensions & Modular Configuration

• Product Dimensions: W: 86 mm, H: 86 mm, D: 9.9 mm (excluding base)

• Panel Thickness: Optimized for flush wall integration

• Conjoined Options: 1-Gang / 2-Gang / 3-Gang / 4-Gang / 5-Gang

• System Compatibility: Compatible with SMARTFY D8B modular aluminum switch systems

---

Key Product Features

The SMARTFY Thailand Socket with Dual USB delivers safe high-voltage power and fast USB charging in a premium aluminum design.

• Heavy-duty 16A Thailand standard socket

• Dual USB ports (Type-C + Type-A) for charging multiple devices simultaneously

• High-voltage rated for residential and commercial appliances

• Premium aluminum panel with metal surface craftsmanship

• Long operational lifespan with robust internal components

• Modular design supporting multi-gang installations

• Ideal for homes, offices, hotels, and international commercial spaces
