SMARTFY 86-Type Multimedia Socket | Aluminum D8B Function Modular Panel

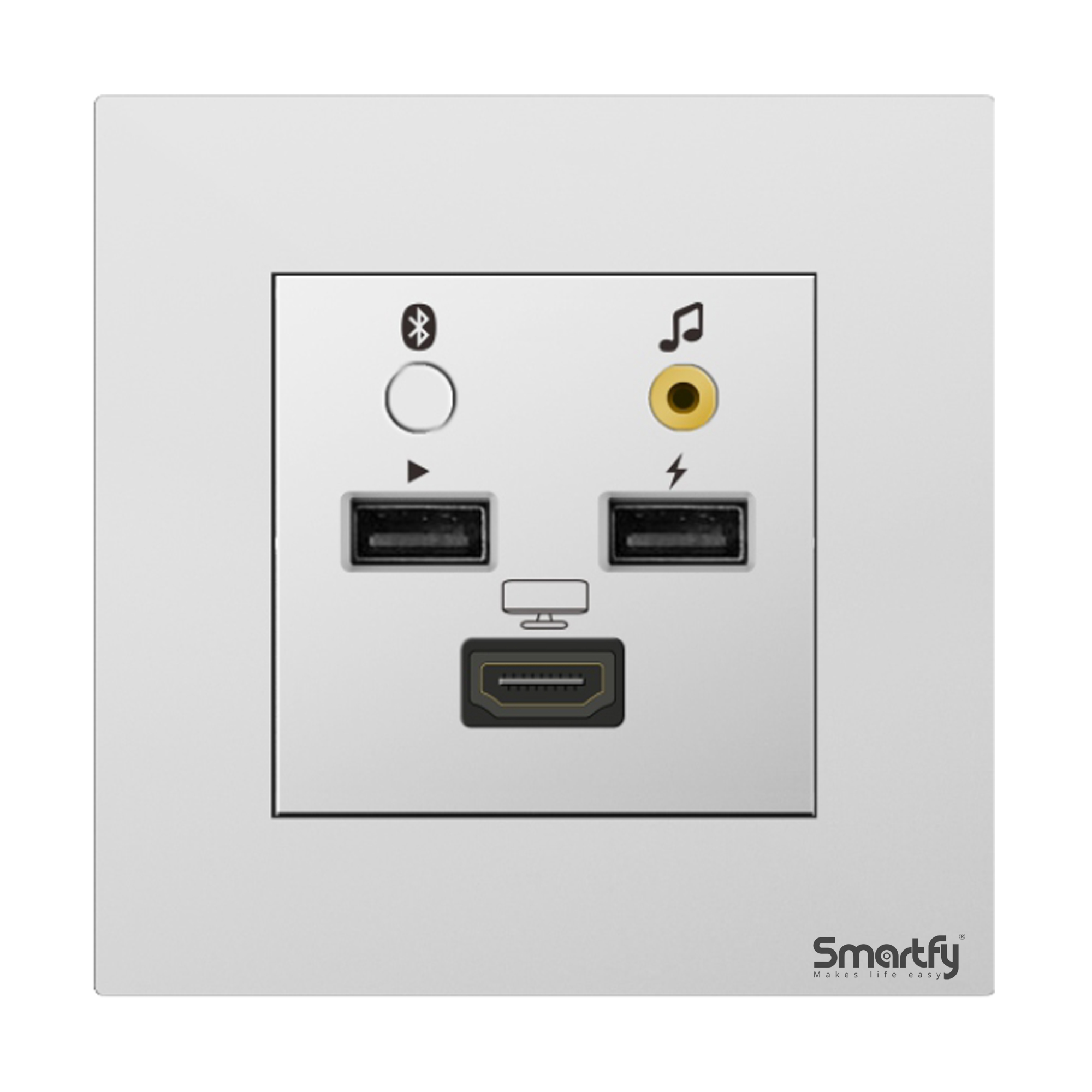

SMARTFY 86-Type Multimedia Socket

Aluminum D8B Series | Function Modular Panel

---

Product Overview

The SMARTFY 86-Type Multimedia Socket is a versatile function modular interface designed for modern hotels, conference rooms, smart homes, and commercial spaces. It provides clean, organized access for multimedia signal connections while maintaining a premium aesthetic. Built with a durable aluminum panel and precision metal craftsmanship, this socket integrates seamlessly into SMARTFY D8B modular wall systems and supports flexible multi-gang installations.

---

General Product Information

• Brand: SMARTFY

• Product Name: 86-Type Multimedia Socket

• Panel Type: Medium–Large Modular Panel

• Series: D8B

• Category: Multimedia / Signal Interface Module

• Application Areas: Hotels, meeting rooms, offices, smart homes, commercial spaces

• Function Type: Function Modular (Signal Interface)

---

Electrical & Performance Specifications

• Wiring Method: Multimedia Signal Interface

• Rated Current: ≤3A

• Rated Voltage: 250V AC

• High Voltage Compatibility: Yes

• Types of Switches: Function Modular

• Relay Function: Not included

• Changeable Backlight Function: Not available

---

Environmental Operating Conditions

• Operating Temperature: -20°C to +40°C

• Operating Humidity: ≤95% RH (non-condensing)

• Operating Environment: Indoor, dry locations

• Stability: Designed for continuous commercial use

---

Installation & Mechanical Design

• Installation Method: Flush-mounted in-wall installation

• Wall Box Compatibility: Standard 86mm wall box

• Embedded Depth Requirement: ≥45mm

• Mounting Type: Screw-fixed

• Installation Orientation: Horizontal or vertical

• System Compatibility: SMARTFY D8B modular system

---

Materials & Surface Finish

• Surface Material: High-grade Aluminum

• Internal Structure: Flame-retardant engineering plastic

• Surface Treatment: Spray-coated / Brushed finish

• Surface Characteristics:

  • Scratch-resistant

  • Corrosion-resistant

  • Easy to maintain

• Color Options: Multiple premium color finishes available

---

Dimensions & Modular Configuration

• Product Dimensions:

  • Width: 86 mm

  • Height: 86 mm

  • Depth: 9.9 mm (excluding base)

• Embedded Depth: ≥45 mm

• Cojoined Options:

  • 1-Gang

  • 2-Gang

  • 3-Gang

  • 4-Gang

  • 5-Gang

---

Key Product Features

• Standard 86-type multimedia interface design

• Function modular architecture for flexible customization

• Rated up to 250V with low-current signal operation

• Premium aluminum panel with metal surface craftsmanship

• Flush-mount installation for a clean, modern look

• Supports multi-gang modular configurations

• Stable operation across wide temperature and humidity ranges

• Ideal for hotel rooms, conference halls, and smart commercial spaces
