SMARTFY 15A BS Socket with Switch & Neon | Aluminum D8B Series High-Voltage Wall Socket

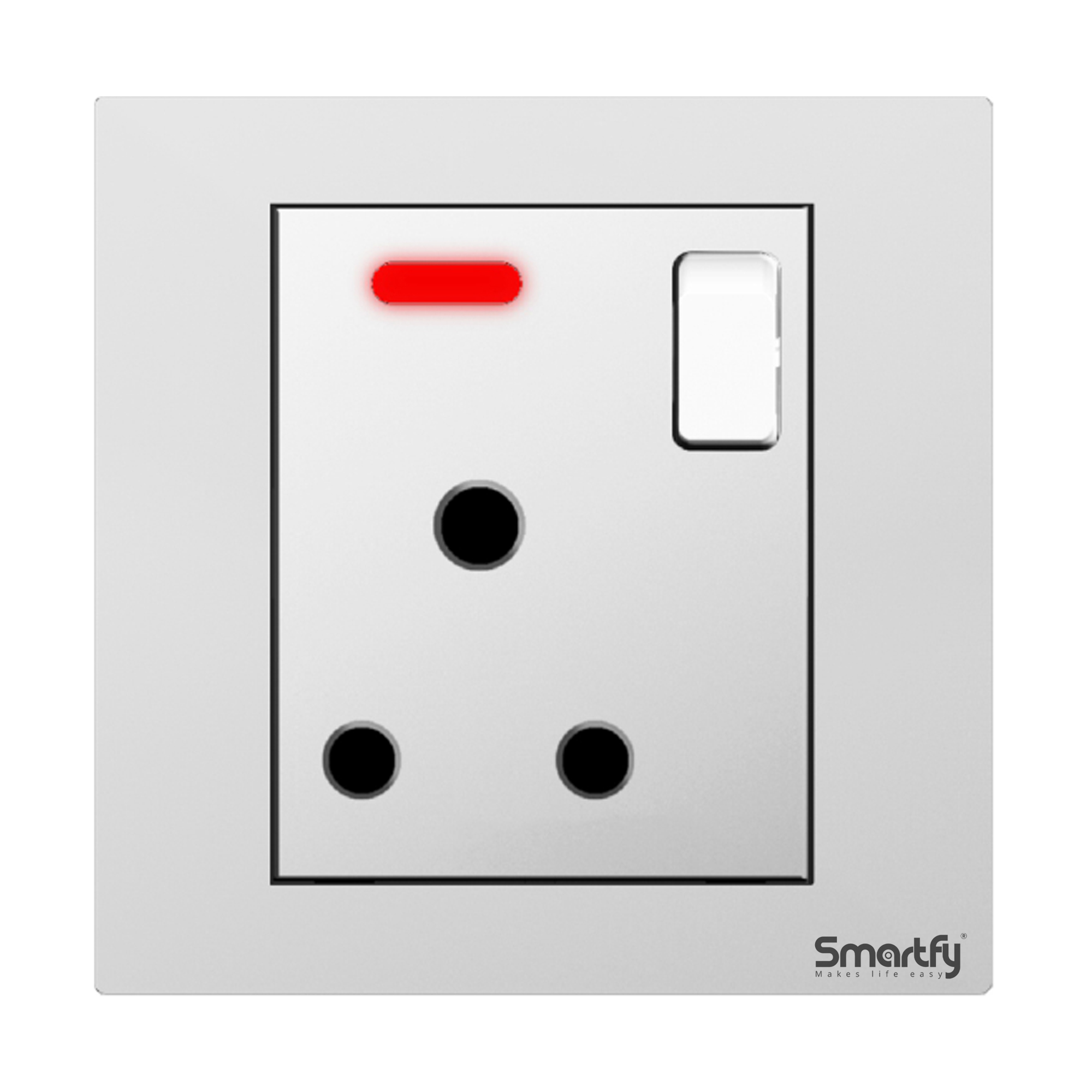

SMARTFY 15A BS Socket with Switch & Neon

Aluminum D8B Series | High-Voltage Power Socket

---

Product Introduction

The SMARTFY 15A BS Socket with Switch & Neon is designed for high-load electrical applications where visibility, safety, and durability are essential. Equipped with a built-in neon indicator, this socket provides clear ON/OFF status indication, making it ideal for heavy-duty appliances and professional installations. The premium aluminum panel enhances both strength and aesthetics, ensuring reliable performance in residential, hospitality, and commercial environments.

---

General Product Information

• Brand: SMARTFY

• Product Name: 15A BS Socket with Switch & Neon

• Product Type: Wall-mounted power socket with indicator

• Socket Standard: British Standard (BS)

• Series: D8B Aluminum Series

• Category: High-Voltage Power Socket

• Applications: Homes, hotels, serviced apartments, offices, kitchens, and commercial spaces

---

Electrical & Performance Specifications

• Rated Current: 15 Amperes

• Rated Voltage: 250V AC

• Frequency: 50/60Hz

• Switch Type: Double Pole

• Neon Indicator: Yes (Power status indication)

• High-Voltage Compatibility: Yes

• Relay Function: Not included

• USB Input Voltage: Not supported

• USB Output Voltage: Not supported

• USB Output Current: Not supported

---

Wiring & Electrical Safety

• Wiring Method: Live line / Neutral line

• Double Pole Switching: Ensures complete isolation of live and neutral for enhanced safety

• Neon Function: Provides clear visual indication when power is ON

• Electrical Protection: Designed to reduce overheating and ensure stable current flow

• Changeable Backlight Function: Not available

---

Installation & Mechanical Design

• Installation Method: In-wall, flush-mounted installation

• Wall Box Compatibility: Standard 86mm wall box

• Recommended Embedded Depth: ≥45mm

• Mounting Method: Screw-fixed installation

• Installation Orientation: Horizontal or vertical

• Mechanical Lifespan: ≥100,000 switching operations

---

Materials & Surface Finish

• Front Panel Material: High-grade aluminum

• Internal Housing: Flame-retardant engineering plastic

• Surface Treatment: Spray-coated / Brushed finish

• Surface Properties: Scratch-resistant, corrosion-resistant, easy to maintain

• Color Options: Multiple premium color finishes available

---

Dimensions & Modular Configuration

• Module Size: 52 × 65 mm

• Frame Size: 86 × 86 mm (excluding base)

• Panel Design: Flush-fit for seamless wall integration

• Conjoined Options:

  • 1-Gang

  • 2-Gang

  • 3-Gang

  • 4-Gang

  • 5-Gang

• System Compatibility: Compatible with SMARTFY D8B modular switch systems

---

Detailed Wall Box & Internal Space Design

• Wall Box Type: Standard 86mm electrical wall box

• Minimum Box Depth: ≥45mm

• Box Material Compatibility: Plastic and metal wall boxes

• Internal Layout: Optimized wiring terminals for secure and easy cable connection

• Heat Dissipation: Designed for thermal stability during continuous high-load usage

• Cable Clearance: Adequate internal space to prevent wire stress

---

Key Product Features

Designed for high-current applications, the SMARTFY 15A BS Socket with Switch & Neon combines enhanced visibility, electrical safety, and premium aluminum craftsmanship for dependable daily operation.

• Heavy-duty 15A British Standard socket

• Integrated neon indicator for clear power status

• Double pole switch for superior electrical safety

• High-voltage rated for demanding appliances

• Premium aluminum panel with metal surface craftsmanship

• Long lifespan with high-quality internal components

• Modular design supporting multi-gang installations
