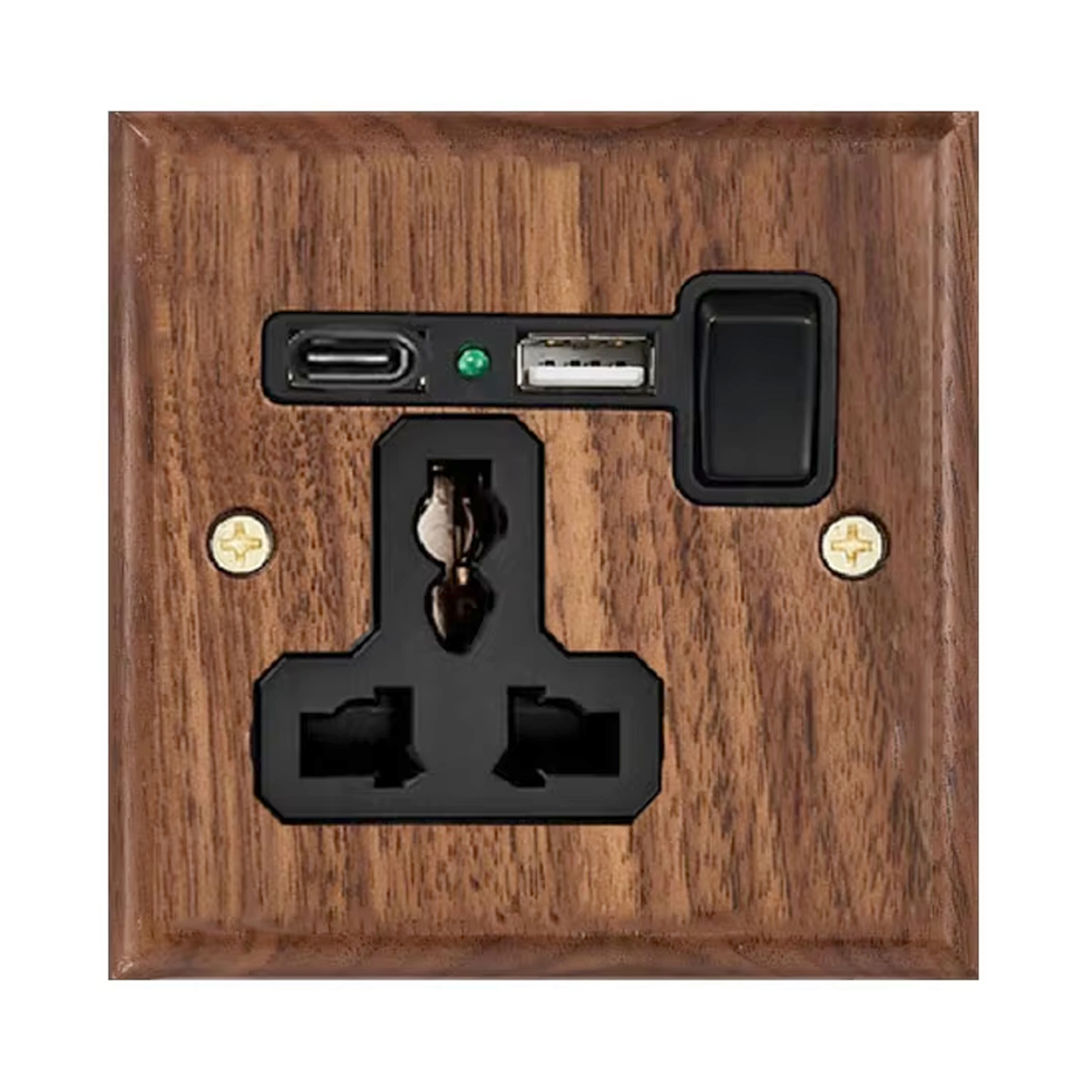

SMARTFY Universal Wall Socket with USB Charging
Configuration
Single 3-Pin MF Switched Socket + USB Type-A + USB Type-C (W Series)
Color: Black Walnut Panel
Panel Size: 86 × 86 mm
1. Use Case
The SMARTFY Universal Wall Socket with Integrated USB Charging is designed to provide safe, reliable, and convenient power access for modern portable devices. It supports simultaneous charging and power supply, making it ideal for high-traffic and premium environments.
Suitable for charging:
-
Mobile phones
-
Tablets
-
Smart watches
-
Bluetooth speakers
-
Power banks
-
Other USB-powered devices
2. Product Overview
This SMARTFY wall socket features a single 3-pin MF switched power outlet combined with USB Type-A and Type-C charging ports, delivering high efficiency, durability, and refined aesthetics. The Black Walnut panel finish adds a sophisticated touch, making it ideal for luxury residential, commercial, and hospitality applications.
3. Product Details
| Specification | Description |
|---|---|
| Product Type | Single 3-Pin MF Switched Wall Socket with USB Charging |
| Series | W Series |
| Panel Material | Metal |
| Internal Material | Phosphor Copper / Bronze |
| Panel Size | 86 × 86 mm |
| Color Finish | Black Walnut Panel |
| Rated Voltage | 110–250V~ |
| Rated Current | 13A |
| Aperture Size | Compatible with 3 mm & 4 mm wires |
| Copper Moulding | Low resistance, high conductivity, long service life |
| Function | Power socket with integrated USB Type-A & Type-C charging |
| Application Areas | Home, Villas, Hotels, Office Buildings, Commercial Spaces |
| Warranty | 2 Years |
| Certification | CE, RoHS |
4. USB Charging Performance
All values are measured at an ambient temperature of +25°C after 15 minutes of continuous operation.
USB Type-A Charger
| Parameter | Specification |
|---|---|
| Nominal Input Voltage | 110–250V~ |
| Nominal Input Frequency | 50–60 Hz |
| Power Consumption | 10.5 W |
| Maximum Input Current | 300 mA |
| Standby Power Consumption | ≤ 0.05 W |
| Average Efficiency | 79.94% |
| Nominal Output Voltage | 9 V |
| Maximum Output Current | 2.1 A |
USB Type-C Charger
| Parameter | Specification |
|---|---|
| Nominal Input Voltage | 110–250V~ |
| Nominal Input Frequency | 50–60 Hz |
| Power Consumption | 18 W |
| Maximum Input Current | 500 mA |
| Standby Power Consumption | ≤ 0.075 W |
| Average Efficiency | 81.39% |
| Nominal Output Voltage | 9 V |
| Maximum Output Current | 3.6 A |
5. Key Features & Benefits
-
Single 3-pin MF switched socket for safe and controlled power usage
-
Dual USB charging (Type-A + Type-C) for fast, flexible device compatibility
-
Premium Black Walnut panel finish for elegant interiors
-
High-conductivity copper components ensure stable power delivery
-
Low standby power consumption for energy efficiency
-
Hospitality-grade durability for long-term use
-
Safe and certified, compliant with CE and RoHS standards
6. Ideal For
-
Luxury hotels & serviced apartments
-
Villas & modern residences
-
Corporate offices
-
Commercial buildings
-
Guest rooms & workspaces
