SMARTFY Data & USB Socket | Aluminum D8B Ethernet & USB Wall Socket

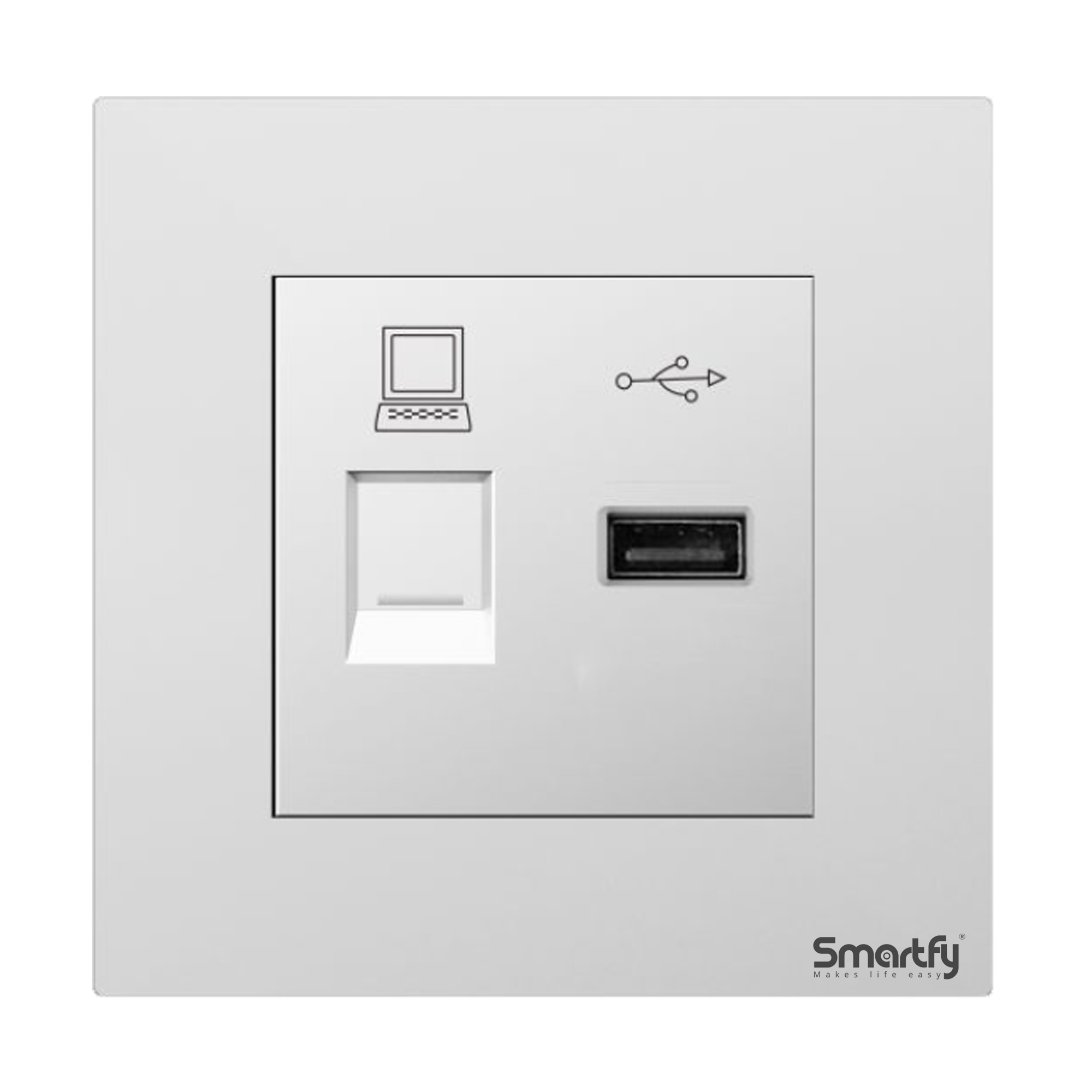

SMARTFY Data & USB Socket

Aluminum D8B Series | Ethernet Data + USB Charging Wall Socket

---

Product Introduction

The SMARTFY Data & USB Socket combines high-speed Ethernet connectivity with convenient USB charging in a single, elegant wall-mounted module. Designed for modern homes, offices, hotels, and smart commercial spaces, this socket supports stable CAT5 data transmission while providing reliable USB charging for mobile devices. Crafted with a premium aluminum panel and refined metal surface workmanship, it integrates seamlessly into SMARTFY modular wall systems for a clean and professional finish.

---

General Product Information

• Brand: SMARTFY

• Product Name: Data & USB Socket

• Product Type: Information Socket with USB Charging

• Series: D8B Aluminum Series

• Applications: Homes, offices, hotels, conference rooms, commercial buildings

• Ideal For: Network connectivity and device charging at a single access point

---

Data & Network Specifications

• Wiring Method: CAT 5 Ethernet Cable

• Number of Cores: 8 Cores

• Connector Type: QuickPort Embedded Module

• Transmission Frequency: 100–200 MHz

• Insertion & Unplugging Lifespan: High-durability design for frequent use

• Network Performance: Stable, interference-resistant data transmission

---

USB Charging Specifications

• USB Output Voltage: 5V ±0.2V DC

• USB Output Current: 2.1A (Normal Charge)

• USB Function: Dedicated USB charging port

• Charging Safety: Over-current and short-circuit protection

---

Electrical & Functional Details

• Types of Switches: Information Socket

• Neutral / Live Line: Not required (data & USB module)

• Relay Function: Not included

• Changeable Backlight Function: Not available

---

Installation & Mechanical Design

• Installation Method: Flush-mounted in-wall installation

• Wall Box Compatibility: Standard 86mm wall box

• Embedded Depth Requirement: ≥45mm

• Mounting Method: Secure screw-fixed installation

• Mechanical Lifespan: Designed for long-term daily use

• Installation Orientation: Horizontal or vertical

---

Materials & Surface Finish

• Front Panel Material: High-grade Aluminum

• Surface Treatment: Spray-coated / Brushed finish

• Surface Characteristics:

  • Scratch-resistant

  • Corrosion-resistant

  • Easy-to-clean metal surface

• Color Options: Multiple premium color options available

---

Dimensions & Modular Configuration

• Product Dimensions:

  • Width: 86 mm

  • Height: 86 mm

  • Depth: 9.9 mm (excluding base)

• Modular System: SMARTFY D8B Series

• Conjoined Options:

  • 1-Gang

  • 2-Gang

  • 3-Gang

  • 4-Gang

  • 5-Gang

---

Key Product Features

• Combines Ethernet data port and USB charging in one socket

• Supports CAT5 cabling with 8-core configuration

• Stable data transmission up to 100–200 MHz

• USB charging output: 5V DC, 2.1A

• Premium aluminum panel with metal surface craftsmanship

• Flush-mounted design for modern interiors

• Compatible with 1–5 gang modular wall installations

• Scratch-resistant and corrosion-resistant finish

• Ideal for hotels, offices, and smart workspaces
