SMARTFY 2 Pin & 3 Pin Universal Socket with Dual USB | Aluminum D8B High-Voltage Wall Socket

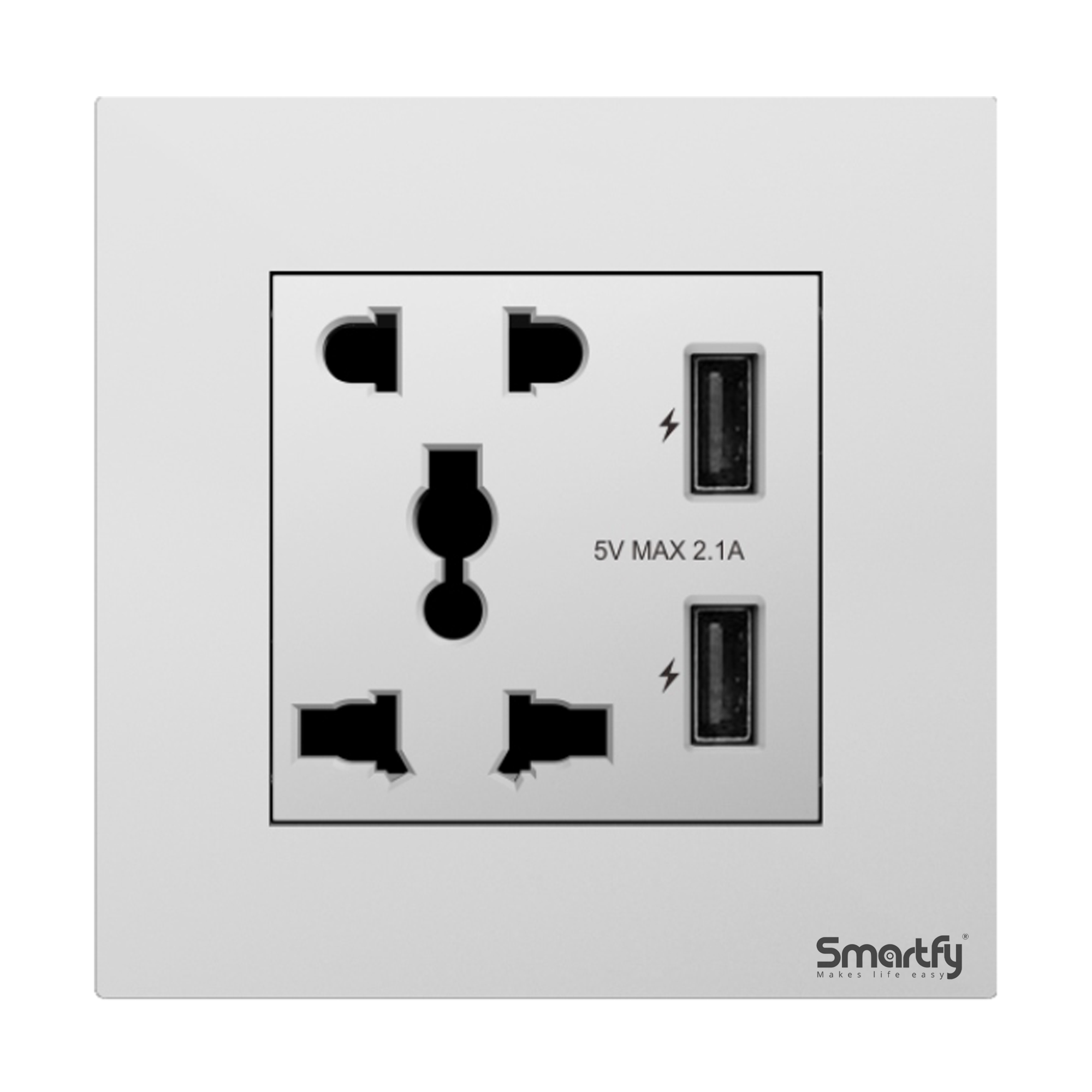

SMARTFY 2 Pin & 3 Pin Universal Socket with Dual USB

Aluminum D8B  Series | High-Voltage Wall Socket with USB Charging

---

Product Introduction

The SMARTFY 2 Pin & 3 Pin Universal Socket with Dual USB is a versatile and convenient solution for modern interiors. It supports multiple international plug types while providing dual USB charging ports for smartphones, tablets, and other portable devices. Designed with a premium aluminum panel, this socket delivers high-voltage AC power and reliable USB charging in a sleek, flush-fit design, ideal for homes, hotels, offices, and commercial spaces.

---

General Product Information

• Brand: SMARTFY

• Product Name: 2 Pin & 3 Pin Universal Socket with Dual USB

• Product Type: Wall-mounted power socket with USB charging

• Socket Standard: Universal (supports 2-pin and 3-pin plugs)

• Series: D8B Aluminum Series

• Category: High-Voltage Power Socket

• Applications: Homes, hotels, offices, commercial spaces, and international setups

---

Electrical & Performance Specifications

• Rated Voltage: 250V AC

• Rated Current: 10A

• USB Input Voltage: 100–240V AC

• USB Output Voltage & Current: 5 ±0.2V DC, 2.1A (Dual USB)

• Switch Type: Not included (No Button & No Neon)

• High-Voltage Compatibility: Yes

• Relay Function: Not included

• Changeable Backlight Function: Not available

• Power Stability: Designed for simultaneous AC and USB usage

---

Wiring & Safety Features

• Wiring Method: Live Line / Neutral Line

• Electrical Protection: Reduces overheating, arcing, and short-circuits

• User Safety Compliance: Meets international electrical and USB safety standards

• Indicator / Neon: Not included

---

Installation & Mechanical Design

• Installation Method: Flush-mounted in-wall installation

• Wall Box Compatibility: Standard 86mm wall box

• Recommended Embedded Depth: ≥45mm

• Mounting Style: Screw-fixed installation

• Installation Orientation: Horizontal or vertical

• Mechanical / Touch Lifespan: ≥100,000 operations

---

Materials & Surface Finish

• Front Panel Material: High-grade Aluminum

• Internal Housing: Flame-retardant engineering plastic

• Surface Treatment: Spray-coated / Brushed finish

• Surface Properties: Scratch-resistant, corrosion-resistant, easy to clean

• Color Options: Multiple premium finishes available

---

Dimensions & Modular Configuration

• Product Dimensions: W: 86 mm, H: 86 mm, D: 9.9 mm (excluding base)

• Panel Thickness: Optimized for flush wall integration

• Conjoined Options: 1-Gang / 2-Gang / 3-Gang / 4-Gang / 5-Gang

• System Compatibility: Compatible with SMARTFY D8B modular aluminum switch systems

---

Key Product Features

The SMARTFY 2 Pin & 3 Pin Universal Socket with Dual USB provides versatile AC power and fast USB charging in a premium aluminum design.

• Universal socket supporting 2-pin and 3-pin plugs from multiple regions

• Dual USB ports for fast device charging (2.1A, 5V DC)

• High-voltage rated for residential and commercial appliances

• Premium aluminum panel with metal surface craftsmanship

• Long operational lifespan with durable internal components

• Modular design supporting multi-gang installations

• No button or neon, designed for a clean, minimalist look
