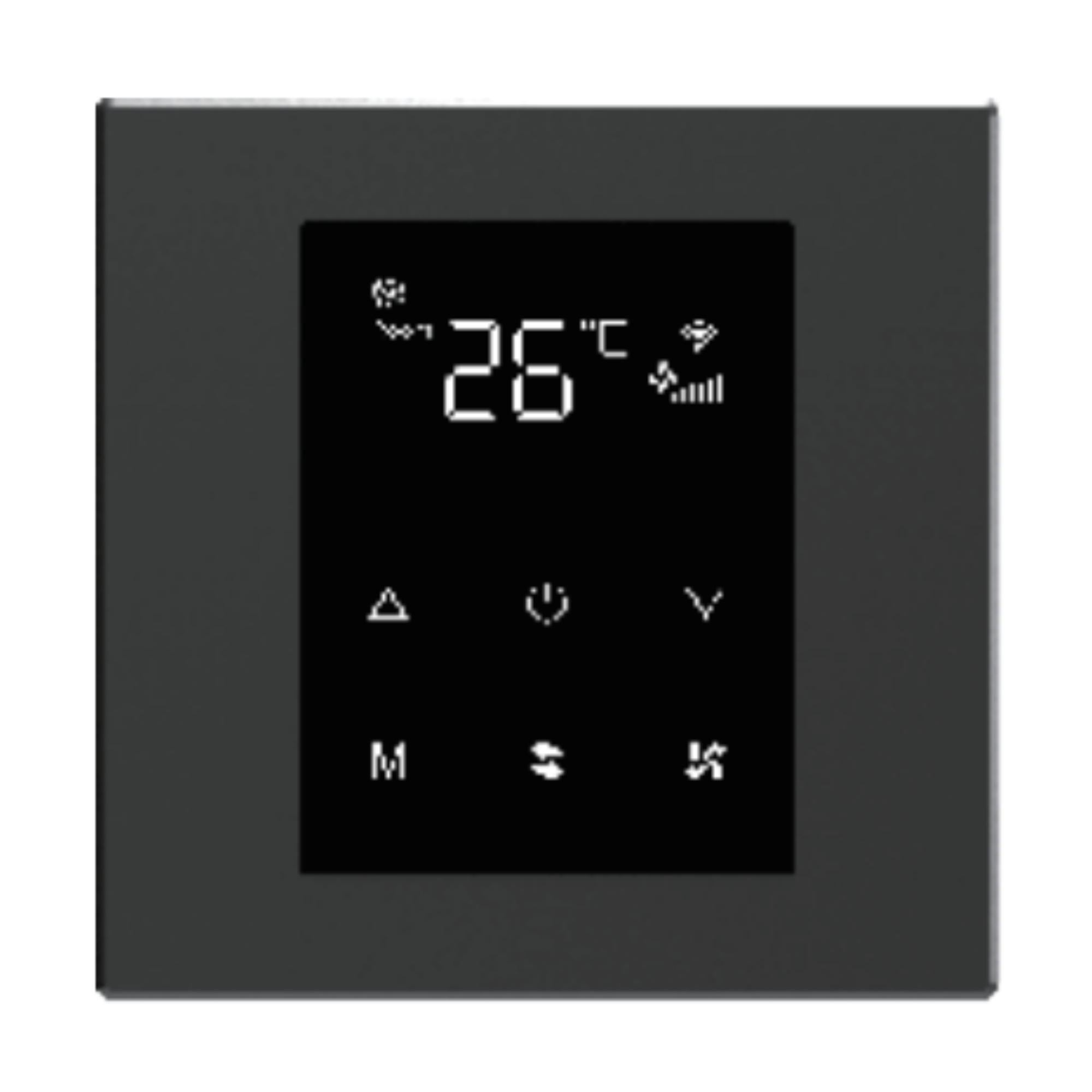

SMARTFY Z-WK6 Touch Thermostat
Fan Coil / HVAC Wall-Mounted Touch Thermostat
Product Introduction
The SMARTFY Z-WK6 Touch Thermostat provides modern, reliable control for heating, cooling, and ventilation systems. Featuring a responsive touch interface and refined acrylic panel, it allows smooth adjustment of temperature and fan speed. Its dual-mode and triple-mode functionality makes it ideal for residential, hospitality, and commercial HVAC applications. Designed for flush mounting, it integrates seamlessly with contemporary wall switch systems.
General Product Information
-
Brand: SMARTFY
-
Product Name: Z-WK6 Touch Thermostat
-
Switch Type: Touch Thermostat
-
Category: Low-Voltage HVAC Controller
-
Applications: Homes, offices, hotels, commercial buildings
-
Ideal For: Fan coil units, floor heating, air conditioning, fresh air systems
Electrical & Performance Specifications
-
Air Conditioner Type: Fan Coil
-
Wiring Method: Low Voltage
-
Fan Speed: 3 Gears
-
Rated Input Voltage: 24V
-
Standby Power: 1.2W
-
Set Temperature Range: 16℃ – 30℃
-
Temperature Control Accuracy: ±1℃
-
Temperature Correction Range: -6℃ to +6℃ (Resolution: 1℃)
-
Temperature Sensor: NTC Sensor
-
Adjustment Method: Touch Interface
Function Expansion:
-
Two-in-One: Floor Heating + Air Conditioning / Fresh Air
-
Three-in-One: Floor Heating + Air Conditioning + Fresh Air
Installation & Mechanical Design
-
Installation Method: Flush-mounted wall installation
-
Wall Box Compatibility: Standard 86mm wall box
-
Embedded Depth: ≥45mm
-
Conjoined Options: 1-Gang / 2-Gang / 3-Gang / 4-Gang / 5-Gang
Materials & Surface Finish
-
Front Panel Material: Acrylic Touch Panel
-
Surface Treatment: Smooth, scratch-resistant finish
-
Surface Properties: Durable, easy to clean, modern aesthetic
-
Color Options: Multiple finishes available
Key Product Features
-
Touch thermostat for precise HVAC temperature control
-
Supports 3 fan speeds with adjustable temperature range
-
Two-in-One and Three-in-One system integration
-
High-accuracy NTC temperature sensing
-
Sleek acrylic touch panel with modern design
-
Flush-mounted installation for standard 86mm wall boxes
-
Suitable for modular multi-gang wall configurations
