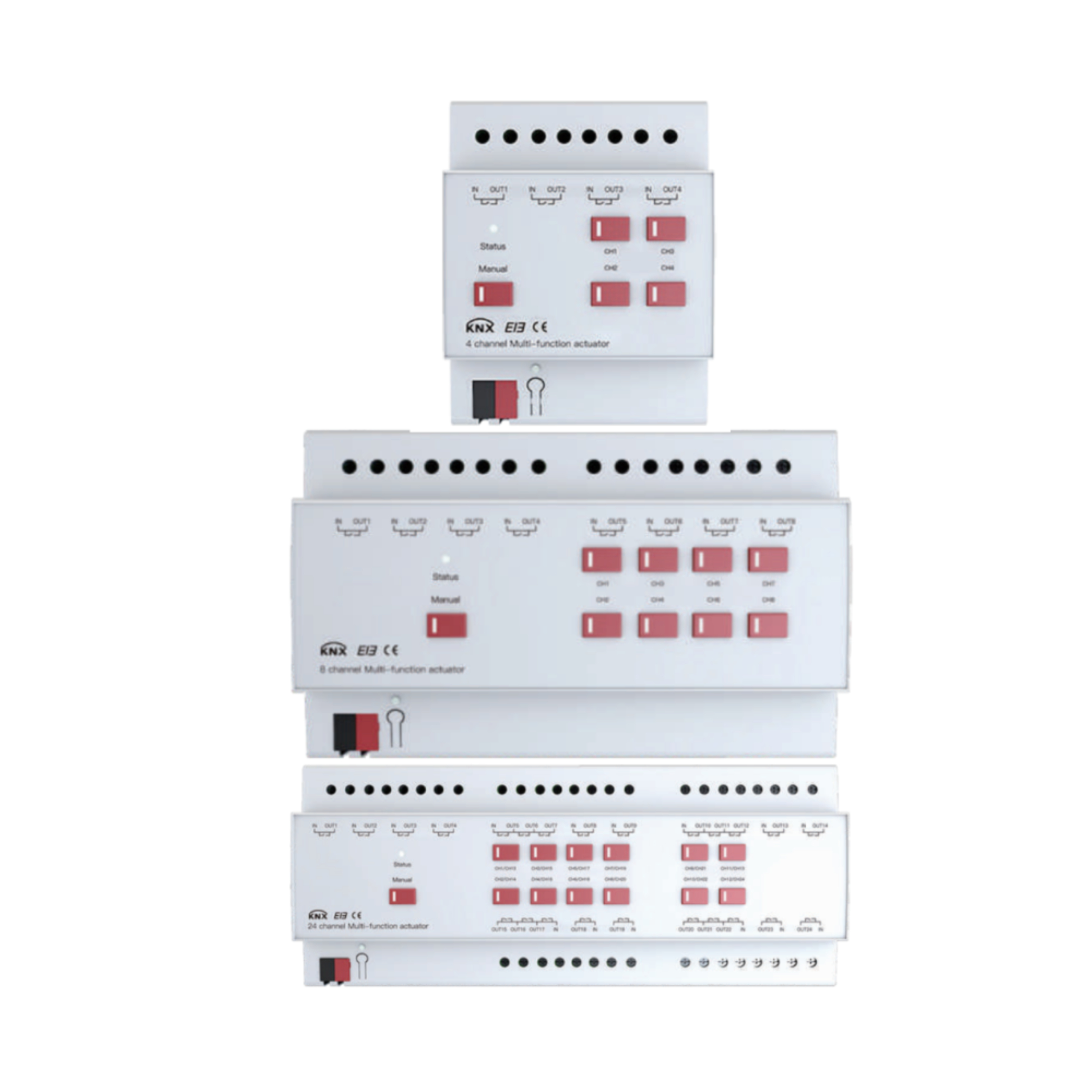

SMARTFY Multifunction Actuator | 4–24 Circuit 10A Multi-Load Control

SMARTFY Multifunction Actuator | Multi-Circuit 10A Control Module

Models: MX0410, MX0610, MX0810, MX1210, MX1610, MX2410

Product Overview

The SMARTFY Multifunction Actuator is a high-performance, modular control device designed for smart homes, hotels, offices, and commercial buildings. Available in configurations of 4, 6, 8, 12, 16, and 24 circuits, each rated at 10A, it provides precise, independent control of multiple lighting zones, fan coils, and curtains.

Equipped with a manual key switch function and magnetic holding relays, the MX series ensures reliable and flexible control of complex automation systems. Its modular DIN-rail design supports mixed loads, allowing a combination of lighting, curtain, and fan coil circuits within a single unit. The MX multifunction actuator is perfect for centralized or distributed smart building automation, delivering high performance with low maintenance.

---

Key Features

1. Multi-Circuit Control: Supports 4, 6, 8, 12, 16, and 24 independent circuits, each rated at 10A for versatile load management.

2. Manual Key Switch Function: Enables direct on/off control without the need for the bus system.

3. Magnetic Holding Relays: Ensures reliable load control and maintains state during power fluctuations.

4. Flexible Mixed Loads: Each circuit can independently control lighting, curtains, or fan coils.

5. Independent Loop Control: Enables precise management of multiple devices or zones in a single actuator.

6. DIN Rail Modular Design: Slim, compact, and easy to install in standard electrical panels.

7. Scalable Automation: Multiple actuators can be combined for large-scale installations, ideal for hotels, offices, and commercial buildings.

8. Reliable & Energy-Efficient: Operates at low bus current with minimal power consumption.

---

Electrical Specifications

• Bus Voltage: 21–30 V DC

• Bus Current: ≤20 mA

• Bus Power Consumption: ≤360 mW

• Circuit Options:

  • MX0410 → 4 circuits

  • MX0610 → 6 circuits

  • MX0810 → 8 circuits

  • MX1210 → 12 circuits

  • MX1610 → 16 circuits

  • MX2410 → 24 circuits

---

Physical Specifications

• Dimensions:

  • 4 circuits → 72 mm × 90 mm × 64 mm

  • 6/8/12 circuits → 145 mm × 90 mm × 64 mm

  • 16/24 circuits → 218 mm × 90 mm × 64 mm

• Installation: DIN rail-mounted

• Operating Environment: Indoor residential, hotel, or commercial use

• Protection Type: IP20

---

Applications

• Smart homes: Control of lighting, curtains, and fan coils.

• Hotels: Guest room automation with multi-loop circuit management.

• Offices and commercial buildings: Efficient management of multiple lighting zones and HVAC loads.

• Integration into KNX or other smart building automation systems for centralized control.
