SMARTFY Emergency Call Button | Aluminum D8B Function Modular Safety Panel

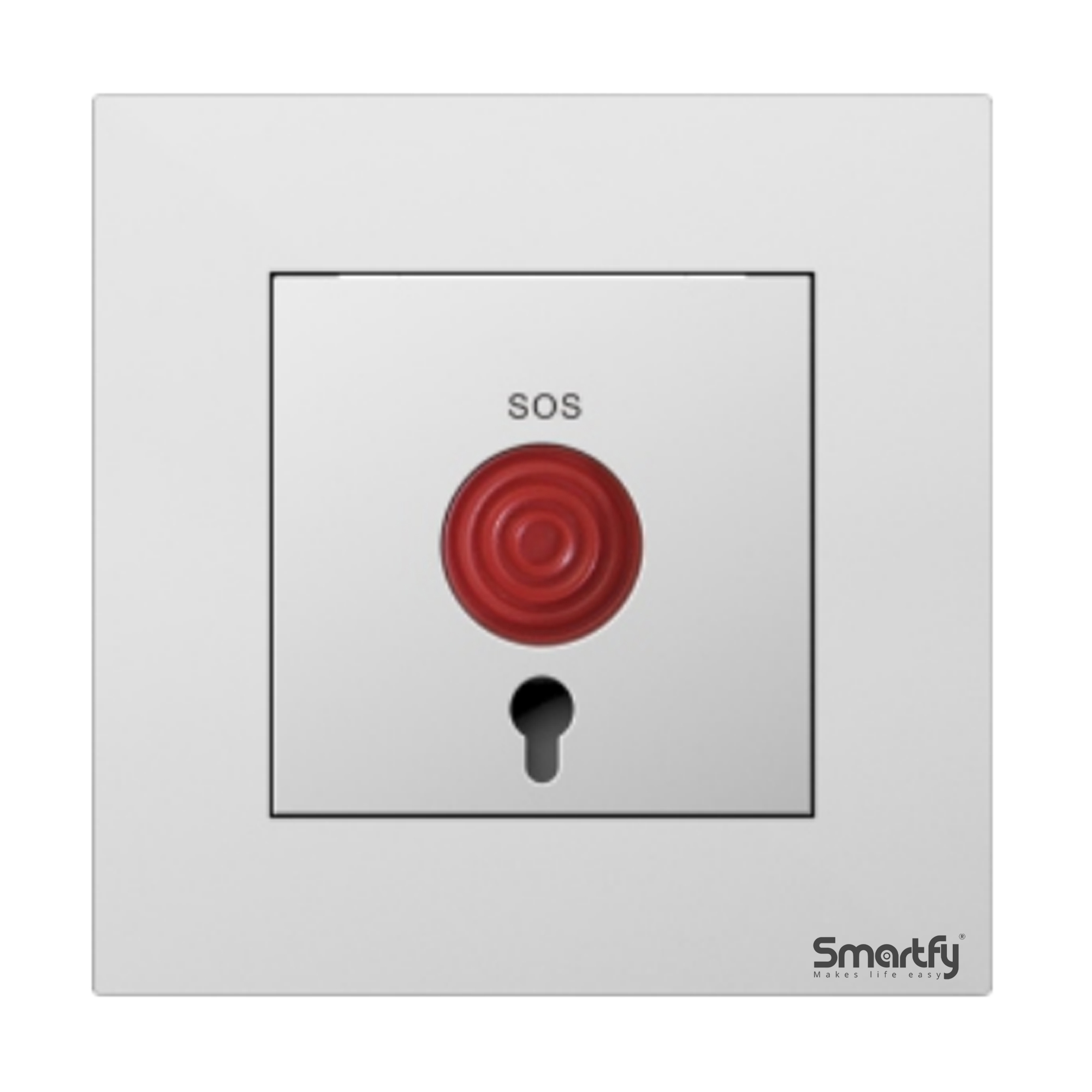

SMARTFY Emergency Call Button

Aluminum D8B Series | Function Modular Panel (Medium–Large Panel)

---

Product Introduction

The SMARTFY Emergency Call Button is a dedicated function module designed for safety-critical environments such as hotels, hospitals, assisted living facilities, and smart buildings. Engineered for reliable low-current operation, this emergency call solution allows instant alert activation in urgent situations. The premium aluminum panel with refined metal craftsmanship ensures durability, visibility, and seamless integration into modern interior designs. Its modular structure supports flexible multi-gang configurations within the SMARTFY D8B system.

---

General Product Information

• Brand: SMARTFY

• Product Name: Emergency Call Button

• Panel Type: Medium–Large Function Modular Panel

• Series: D8B Aluminum Series

• Category: Safety & Emergency Function Module

• Application Areas: Hotels, hospitals, elderly care facilities, bathrooms, smart buildings

• Ideal For: Emergency assistance and alert triggering systems

---

Electrical & Performance Specifications

• Wiring Method: Emergency Call Button (Signal Output)

• Rated Current: ≤3A

• Rated Voltage: 250V AC

• High Voltage Compatibility: Yes

• Function Type: Function Modular (Non-power socket)

• Switch Type: Momentary / Signal switch

• Relay Function: Not included

• Changeable Backlight Function: Not available

---

Environmental Operating Conditions

• Operating Temperature: -20°C to +40°C

• Operating Humidity: ≤95% RH (non-condensing)

• Stability: Designed for continuous indoor operation

• Reliability: Suitable for high-traffic and safety-critical areas

---

Installation & Mechanical Design

• Installation Method: Flush-mounted in-wall installation

• Wall Box Compatibility: Standard 86mm wall box

• Embedded Depth Requirement: ≥45mm

• Mounting Method: Screw-fixed installation

• Installation Orientation: Horizontal or vertical

• Mechanical Lifespan: Designed for long-term operational reliability

---

Materials & Surface Finish

• Front Panel Material: High-grade Aluminum

• Internal Structure: Flame-retardant engineering plastic

• Surface Treatment: Spray-coated / Brushed finish

• Surface Characteristics:

  • Scratch-resistant

  • Corrosion-resistant

  • Easy to clean

• Color Options: Multiple premium color finishes available

---

Dimensions & Modular Configuration

• Product Dimensions:

  • Width: 86 mm

  • Height: 86 mm

  • Depth: 9.9 mm (excluding base)

• Modular System: SMARTFY D8B Series

• Conjoined Options:

  • 1-Gang

  • 2-Gang

  • 3-Gang

  • 4-Gang

  • 5-Gang

---

Key Product Features

• Dedicated emergency call function for safety-critical areas

• Low-current operation (≤3A) for signal-based systems

• High-voltage compatible (250V AC rated)

• Premium aluminum panel with metal surface craftsmanship

• Medium–large panel for visibility and easy access

• Modular design supporting 1–5 gang configurations

• Flush-mounted minimalist appearance

• Reliable operation across wide temperature and humidity ranges

• Ideal for hotels, hospitals, and smart building safety systems
