SMARTFY Dual USB C + A Socket – Fast Charge | Aluminum D8B High-Voltage Wall Socket

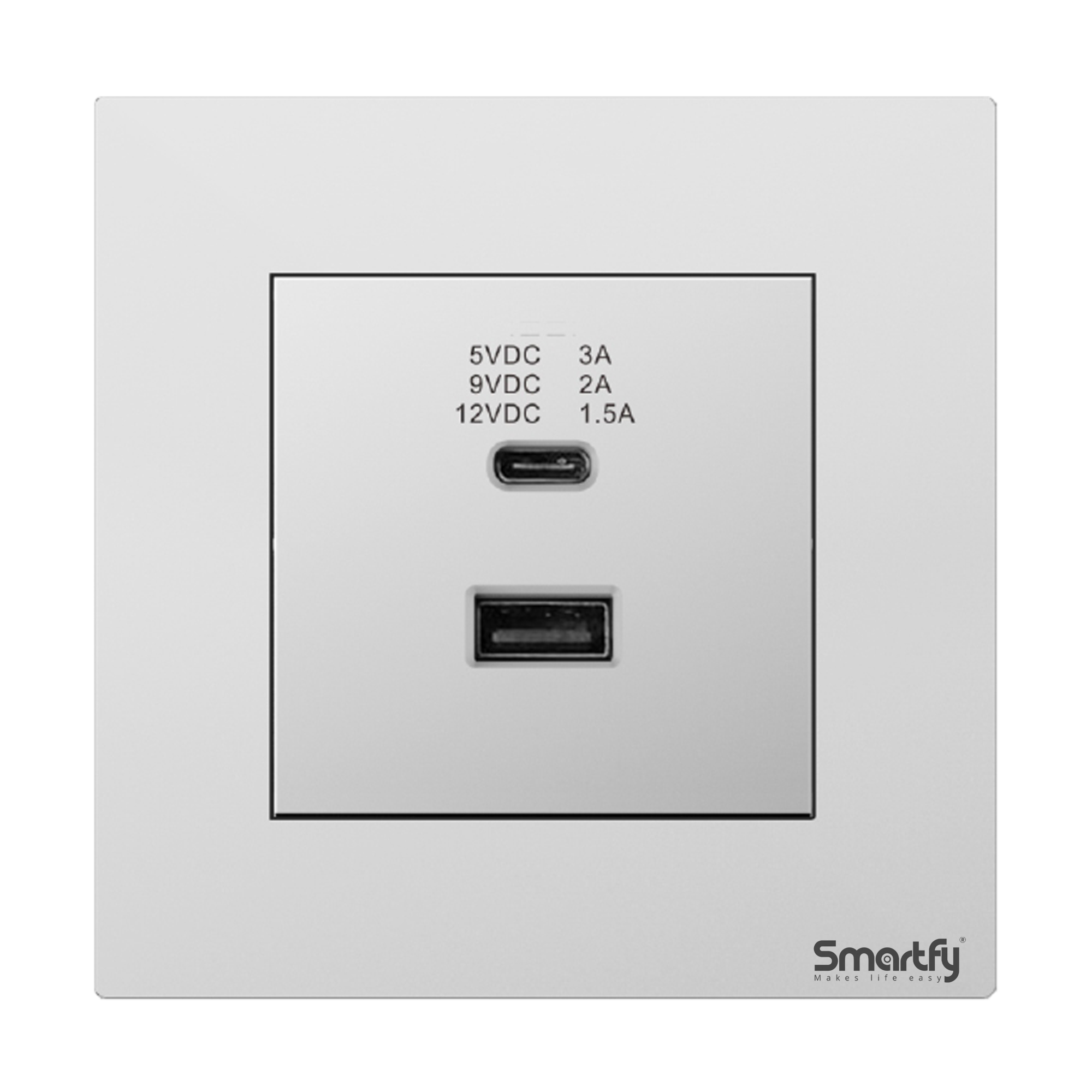

SMARTFY Dual USB C + A Socket – Fast Charge

Aluminum D8B Series | High-Voltage Wall Socket with Fast USB Charging

---

Product Introduction

The SMARTFY Dual USB C + A Socket (Fast Charge) is designed for modern homes, offices, hotels, and commercial spaces where reliable AC power and fast device charging are essential. This socket delivers high-speed USB charging (5V 3A, 9V 2.2A, 12V 1.67A) for multiple devices simultaneously while maintaining high-voltage AC power supply. Its premium aluminum panel with a brushed finish ensures durability and a sleek, modern appearance, complementing any interior design.

---

General Product Information

• Brand: SMARTFY

• Product Name: Dual USB C + A Socket – Fast Charge

• Series: D8B Aluminum Series

• Category: High-Voltage Wall Socket with Fast USB Charging

• Applications: Homes, offices, hotels, commercial spaces

• Ideal For: Fast charging devices alongside standard AC appliances

---

Electrical & Performance Specifications

• Input Voltage (AC): 220V AC

• Rated Voltage (AC): 250V

• Rated Current (AC): 13A

• USB Input Voltage: 100–240V AC

• USB Output Voltage & Current (Fast Charge):

  • 5V = 3A

  • 9V = 2.2A

  • 12V = 1.67A

• High-Voltage Compatibility: Yes

• Switch Type: Not included

• Relay Function: Not included

• Changeable Backlight Function: Not available

• Power Stability: Supports simultaneous AC and fast USB charging

• Overload Protection: Yes, for both AC and USB

---

Wiring & Safety Features

• Wiring Method: Live Line / Neutral Line

• Electrical Protection: Over-current, over-voltage, short-circuit safe

• Fire Safety: Flame-retardant internal housing

• User Safety Compliance: IEC and international electrical safety standards

• Indicator / Neon: Not included

---

Installation & Mechanical Design

• Installation Method: Flush-mounted in-wall installation

• Wall Box Compatibility: Standard 86mm wall box

• Embedded Depth: ≥45mm

• Mounting Style: Screw-fixed for secure installation

• Installation Orientation: Horizontal or vertical

• Mechanical / Touch Lifespan: ≥100,000 operations

• Panel Durability: Scratch, wear, and corrosion-resistant

---

Materials & Surface Finish

• Front Panel Material: High-grade Aluminum

• Internal Housing: Flame-retardant engineering plastic

• Surface Treatment: Spray-coated / Brushed finish

• Surface Properties: Scratch-resistant, corrosion-resistant, fingerprint-resistant

• Color Options: Multiple premium finishes (Matte Black, Silver, Brushed Gold, White)

---

Dimensions & Modular Configuration

• Product Dimensions: W: 86 mm, H: 86 mm, D: 9.9 mm (excluding base)

• Conjoined Options: 1-Gang / 2-Gang / 3-Gang / 4-Gang / 5-Gang

• System Compatibility: Compatible with SMARTFY D8B modular aluminum switch systems

---

Key Product Features

• Dual USB ports (Type-C + Type-A) supporting fast charge

• Output: 5V 3A, 9V 2.2A, 12V 1.67A

• High-voltage rated (AC 250V, 13A) for safe appliance operation

• Premium aluminum panel with metal surface craftsmanship

• Flush-mounted design for sleek, modern interiors

• Modular design supporting 1–5 gang installations

• Overload and short-circuit protection for safety

• Long operational lifespan: ≥100,000 touch cycles

• Scratch-resistant, corrosion-resistant, and easy to clean
