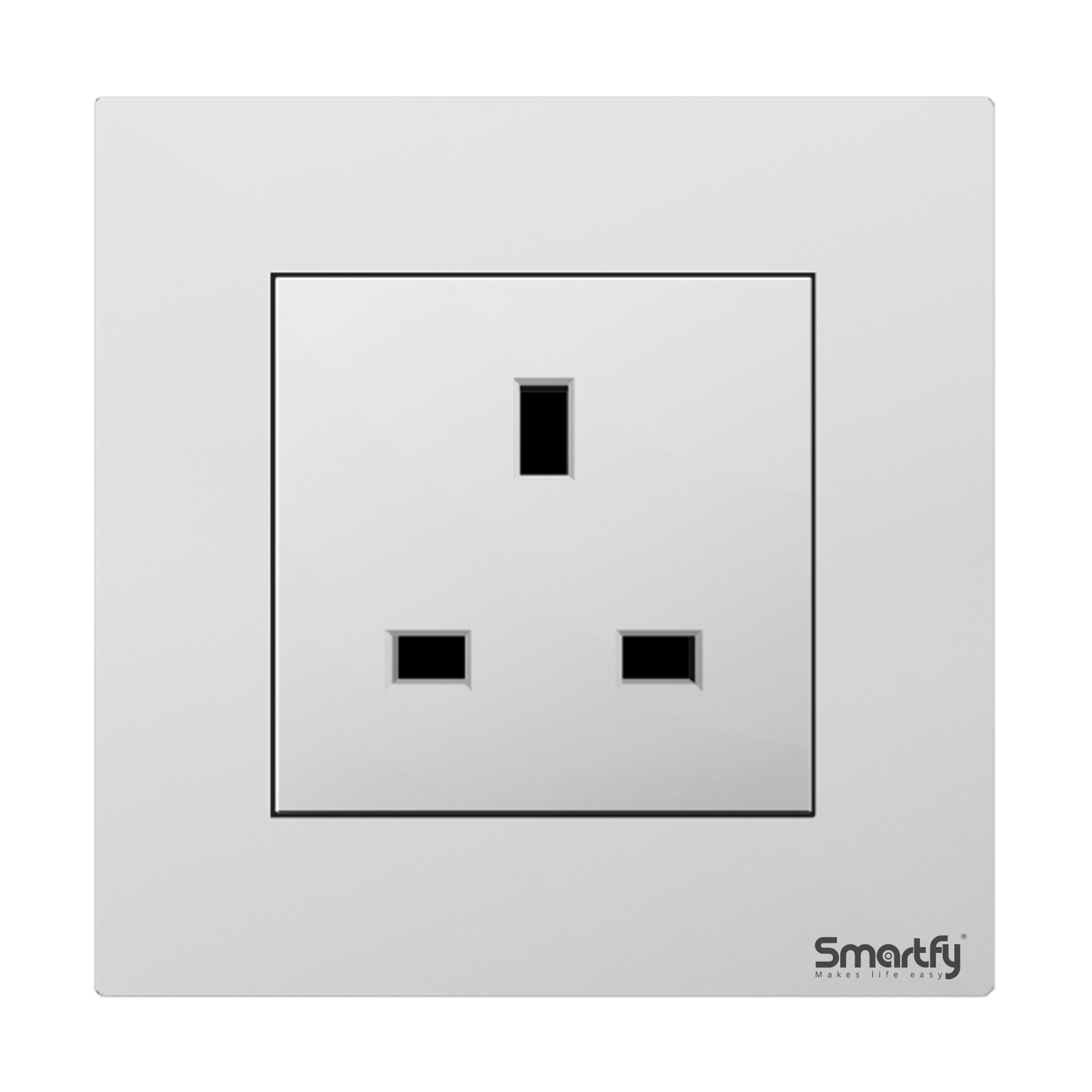

SMARTFY 13A British Socket | Aluminum D8B Series High-Voltage Wall Socket

SMARTFY 13A British Socket

Aluminum D8B Series | High-Voltage Wall Socket

---

Product Introduction

The SMARTFY 13A British Socket (D8B Series) is designed for safe and reliable power delivery in modern residential, hospitality, and commercial spaces. Featuring a premium aluminum front panel and precision-engineered internal components, this socket provides stable high-voltage performance while enhancing interior aesthetics. Its minimalist design ensures seamless integration with contemporary décor.

---

General Product Information

• Brand: SMARTFY

• Product Name: 13A British Socket

• Product Type: Wall-mounted power socket

• Socket Standard: British Standard (BS 1363)

• Series: D8B Aluminum Series

• Category: High-Voltage Power Socket

• Applications: Homes, hotels, offices, retail spaces, and commercial environments

---

Electrical & Performance Specifications

• Rated Current: 13A

• Rated Voltage: 250V AC

• Switch Type: Double Pole

• High-Voltage Compatibility: Yes

• Relay Function: Not included

• USB Input/Output Voltage & Current: Not supported

• Changeable Backlight Function: Not available

• Power Stability: Designed for standard high-load usage

---

Wiring & Safety Features

• Wiring Method: Live Line / Neutral Line

• Double Pole Switching: Ensures complete circuit isolation for enhanced safety

• Electrical Protection: Minimizes overheating and arcing

• User Safety Compliance: Complies with international electrical standards

• Indicator / Neon: Not included

---

Installation & Mechanical Design

• Installation Method: Flush-mounted in-wall installation

• Wall Box Compatibility: Standard 86mm wall box

• Recommended Embedded Depth: ≥45mm

• Mounting Style: Screw-fixed installation

• Installation Orientation: Horizontal or vertical

• Mechanical / Touch Lifespan: ≥100,000 switching operations

---

Materials & Surface Finish

• Front Panel Material: High-grade Aluminum

• Internal Structure: Flame-retardant engineering plastic

• Surface Treatment: Spray-coated / Brushed finish

• Surface Properties: Scratch-resistant, corrosion-resistant, easy to clean

• Color Options: Multiple premium finishes available

---

Dimensions & Modular Configuration

• Product Dimensions: W: 86 mm, H: 86 mm, D: 9.9 mm (excluding base)

• Panel Thickness: Optimized for flush wall integration

• Conjoined Options: 1-Gang / 2-Gang / 3-Gang / 4-Gang / 5-Gang

• System Compatibility: Compatible with SMARTFY D8B modular switch systems

---

Key Product Features

The SMARTFY 13A British Socket delivers safe, reliable, and stylish power for modern interiors.

• British Standard 13A socket for universal plug compatibility

• Double pole switching for enhanced electrical safety

• Premium aluminum panel with metal surface craftsmanship

• High-voltage rated for standard residential and commercial appliances

• Long operational lifespan with robust internal components

• Modular design supporting multi-gang installations

• Ideal for homes, offices, hotels, and commercial spaces
